breakaway

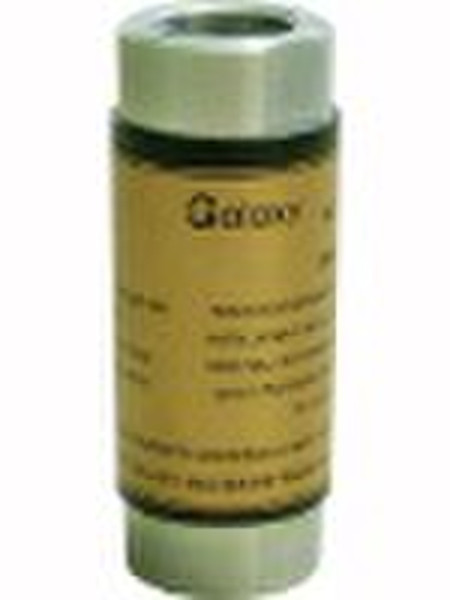

Breakaway,safety breakaway,breakaway connector,safety breakaway swivel Breakaway is a safety device connected between the fueling machine and the nozzle.In case the oil pipeline is dragged by strong external force,the pulloff cutter will close the valve,seal automatically and cut oil flow off to prevent the oil pipeline from breaking.It can prevent mass fuel from extravasation under the situation that the power supply of the fueling machine cannt be disconnected in time to avoid the occurrence of dangerous accident Features: 1.The main body is made of aluminium alloy and allumen, which are light and durable. 2. Beautiful appearance. 3. The springs are made of high quality stainless steel wire 1Cr18Ni9 with reliable performance. 4. Sealing materials are fluorubber and NBR with reliable sealability. 5. Valve core is 1010 nylon with high intensity and good aging resistance. 6. Provide all kind of connection forms for customers.Points for attention while installation: 1. There should not be relative moment of force at the two ends of the pulloff cutter to avoid anthropic damage. 2. At least one of the two ends hoses should be rotating connector. 3. The length of the two-end hoses should be more than 220 mm. 4. After dropping the pulloff cutter should be replaced but not reassembled to prevent form incorrect reassembling Product Features& Basic Parameters TypeInletOutletInside DiameterBreaking forceYH0018A-11NPT3/4"NPT3/4"Φ171100N±50NYH0018A-12G3/4"G3/4"Φ171100N±50NYH0018A-13Rc3/4"Rc3/4"Φ171100N±50NYH0018A-21NPT1"NPT1"Φ231300N±65NYH0018A-22G1"G1"Φ231300N±65NYH0018A-23Rc1"Rc1"Φ231300N±65NYH0018B-11NPT3/4"NPT3/4"Φ191100N±50NYH0018B-12G3/4"G3/4"Φ191100N±50NYH0018B-13Rc3/4"Rc3/4"Φ191100N±50NYH0018B-21NPT1"NPT1"Φ231300N±65NYH0018B-22G1"G1"Φ231300N±65NYH0018B-23Rc1"Rc1"Φ231300N±65N
